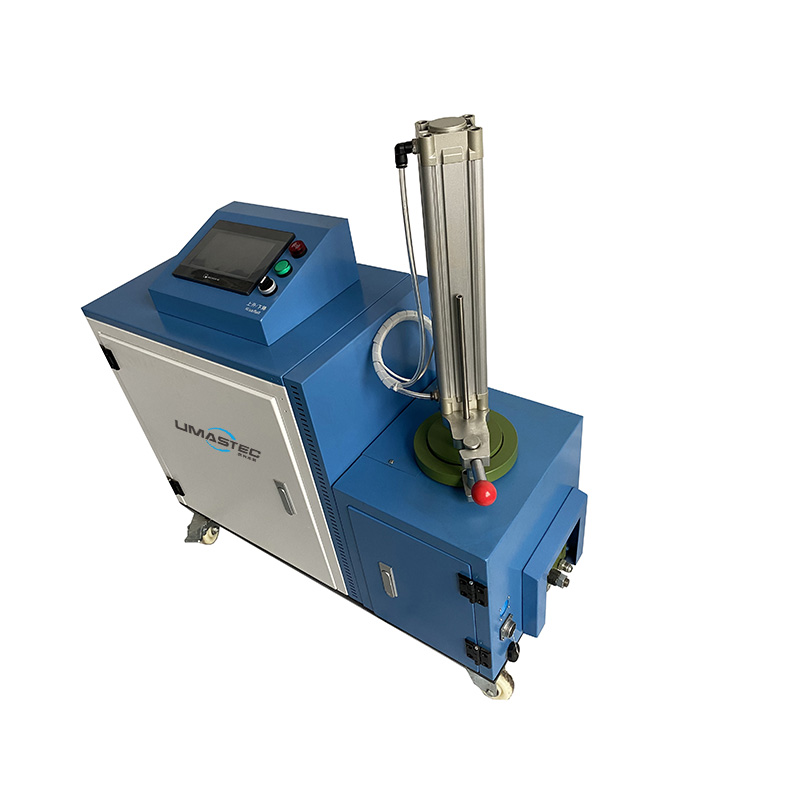

PUR-3 (2.5升PUR胶机)返回

描述:本机适用1-4Kg小包装湿气反应型热熔胶。配备智能型人机界面操作简便,胶槽容易拆卸清洗。利用精密传感器可精确控制熔胶量,让未使用的PUR胶不会发生架桥硬化,大大减少因反应后结皮所产生的浪费,增加用胶效率...

在线留言
全国咨询热线

139-0294-8474
138-2921-6617

  • 产品描述
  • 机台特点
  • 产品规格

This PUR melter is suitable for use of PUR adhesive that its packing is from 1-4 kilogram. Tank is specially designed for easy disassembly and quick cleaning. This PUR melter is equipped with MMI system for easy and simple operation. And it is equipped with precision sensor for precise control of glue flow, preventing non-use PUR from being reacted in tank, which can re- duce waste of reacted PUR and enhance working performance. This PUR melter is recommended to various applications that need small glue consumption.

本机适用1-4Kg小包装湿气反应型热熔胶。配备智能型人机界面操作简便,胶槽容易拆卸清洗。利用精密传感器可精确控制熔胶量,让未使用的PUR胶不会发生架桥硬化,大大减少因反应后结皮所产生的浪费,增加用胶效率。非常适合用胶量较小之各种产业使用。


1.   Individual temperature control system for melting tank, pre-heat tank, hose and gun. 独立温度控制储胶桶、预热桶二管二枪。

2.   Equipped with 7-inch touch panel for easy and simple operation to user.

3.   采用7吋电阻式触控荧幕,控制与显示简单易懂,使用者更容易操作。

4.    Alarm will be on while running out of PUR adhesive, which is to inform customer of adhesive re-loading.

当胶料桶汽缸下压至低点,缺料指示灯警示并发出警示声通知更换新胶。

5.    Tank is specially designed for quick and simple disassembly, no special tools required for tank cleaning, which can enhance working efficiency.

人性化快拆式胶槽设计,不须工具即可拆卸进行清洗,增加工作效率。

6.    Equipped with 24-hr timer for automatically switch on / off this PUR melter for time saving. Two numbers of time setting program for each day are available in this 24-hr timer.

预约一星期式开关机时间,每日可分上下午两组预约开关机时间。

7.   Glue flow is controlled by inverter. This PUR melter is capable of linking robot or automatic machinery.

8.   变频器控制出胶量,并可作连线与自动机器及机械手臂等机台作速度及出胶连结。

9.    Equipped with built-in safety relief valve to avoid peripheral equipment being damaged caused by excessive pressure. Cylinder will automatically stopped while opening tank lid in order to prevent cylinder from being in mal-operation.

内置安全泄压阀,避免压力过大造成周边设备损坏。胶料桶开盖保护,自动停止汽缸动作,防止汽缸误动。

10.This PUR melter will automatically supply glue when sensor detects adhesive level in tank is at lower position. 储胶槽低液位时,汽缸自动下压进行补胶。


Tank Capacity 胶槽容量

Liter

2.5

Max. Melting Rate 最大熔胶速率

Kg/HR

4

Max. Operation Temp. 最高操作温度

200

Max.   Glue Flow Rate 最大出胶速率

g/Min

380

Max. Viscosity 最高使用黏度

CPS

12000

Available Hose/Gun 保温管/喷枪数目

Set

1 - 2

Air Pressure Requirement 气压需求

Kg/cm2

0.5 - 4

Dimensions (L × W × H) 尺寸 (长 × 宽 × 高)

mm

771× 390 × 1075

Weight 重量

Kg

Approx. 80

Melting Tank Power 熔胶槽加热功率

Watt

3400

Number   of gear pumps齿轮泵数量

PCS

1

Power Requirement 电力需求

220V 50/60Hz

The flow rate depends on the viscosity of hot melt adhesive.

实际出胶量会依热熔胶的黏稠度改变。
